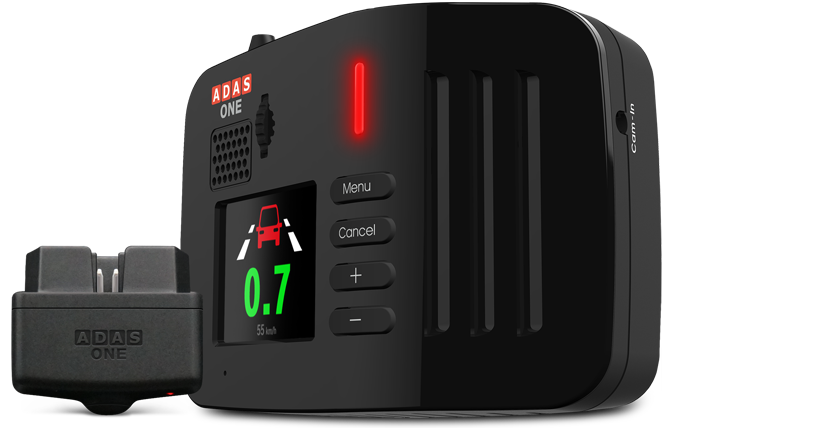

[HM310]

ADAS Exclusive
Camera Solution

HM310 is an ADAS exclusive front camera system equipped
with ADAS (Advanced Driver Assistance Systems) for safe
driving. HM310 is embedded with DTG (Digital Tachograph) for
driving records collection and CAR DVR driving images storage.
HM310 enables drivers to manage their cars safely and effectively.

ADAS Advanced Driver Assistance System

Lane Departure Warning

Monitors the driver’s position on the road and alerts the driver in case of involuntary lane deviation.

-Operating Condition: Driving speed of 60km/h or more

Forward Collision Warning

Measures the time before frontal collisions and alerts the driver in case of collision risk.

-Operating condition: Driving speed of 30km/h or more

Urban Forward Collision Warning

Measures the distance of the driver’s car vise-a-vis the foregoing car in urban environment and alerts the driver in case it dangerously approaches the preceding car

-Operating Condition: driving speed of 5km/h ~ 30km/h

Headway Monitoring Warning

Maintains the car at a constant distance from the preceding car to avoid collision

ADAS Advanced Driver Assistance System

Lane Departure Warning

Measures the time before frontal collisions and alerts the driver in case of collision risk.

-Operating condition: Driving speed of 30km/h or more

Forward Collision Warning

Monitors the driver’s position on the road and alerts the driver in case of involuntary lane deviation.

-Operating Condition: Driving speed of 60km/h or more

Urban Forward Collision Warning

Measures the distance of the driver’s car vise-a-vis the foregoing car in urban environment and alerts the driver in case it dangerously approaches the preceding car

-Operating Condition: driving speed of 5km/h ~ 30km/h

Headway Monitoring Warning

Maintains the car at a constant distance from the preceding car to avoid collision

DTG

The digital tachograph records and stores accurately all vehicle activity data. Including, driving time/distance, GPS tracking, impact detection, device error detection, driving speed, RPM (revolution per minute), and brake signal. DTG facilitates the law enforcement and inspections of professional drivers in order to prevent fatigue and guarantee fair competition, and road safety.

DVR

30 Full HD digital video recorder supporting WDR (Wide Dynamic Range) for vivid recordings by adding natural treatment effect to bright area and brightness to dark area and correcting warped image areas. Car DVR is necessary to denounce false traffic violation accusations or to provide evidence in case of traffic accidents.

The video below demonstrates how HM310 functions. The green lines is a way to illustrate how HM310 detects the surrounding environment.

Optional

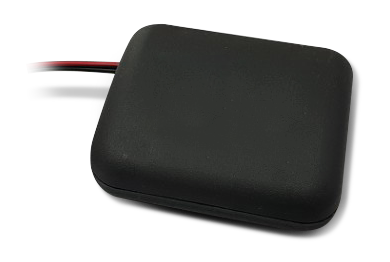

Vibration Module

Generates vibration warnings in case of in-car noisy environment.

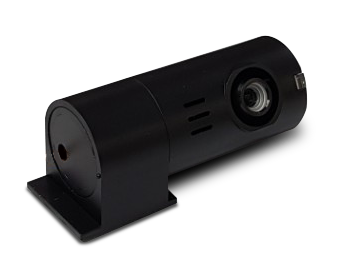

Rear View Camera

Monitors the rear-car environment

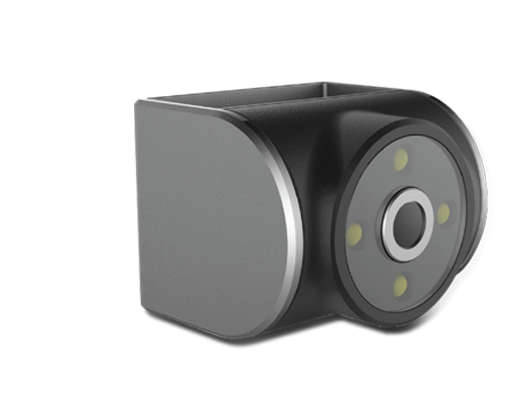

In-Cabin Camera

Monitors in-car environment and the driver’s motion for safe driving

CPU Cortex-A53 Octa Core Application Processor/FHD encoder
Memory Internal Memory 16GB(for Car DVR)
Dimensions /Weight Passenger car 140mm X100mm X68.3mm /344g
Commercial Vehicle 140mm X 100mm X 56.3mm/335g
Front Camera 4.0M Pixel,1/3″ CMOS/DB20, F2.0
LCD 2.4″ TFT LCD, 240 X 320
LED RGB LED X1 /WHITE LED X1
