[AONE]

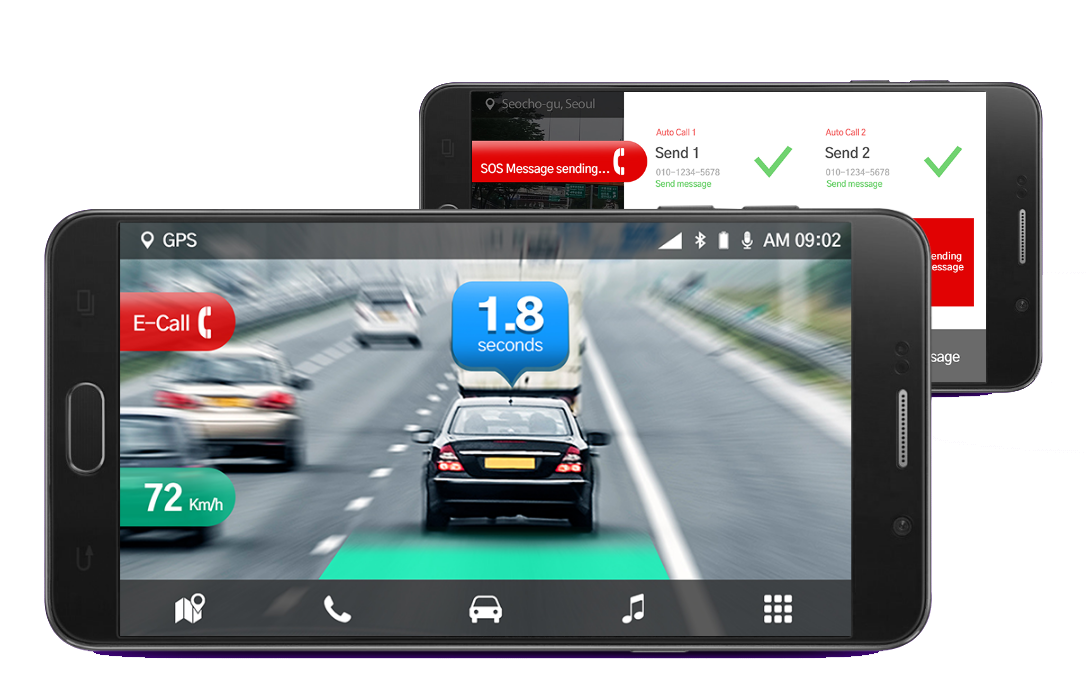

The world’s First
ADAS Solution for Smartphone

Based on ADAS ONE’s in-house technology, AONE assists the driver
and keeps records of the vehicle by means-of smartphone. The
system offers LDWS (Lane Departure Warning System),
FCWS(Forward Collision Warning System), FVSA(Front Vehicle Start
Alert) functions, E-Call(Emergency Call), and driving pattern analysis.
AONE application supports the car management by recording
maintenance data such as changes in oil/tire, air cleaner, air filter,
and brake oil; and initiating a diagnostic code alarm in case of
anomaly detection.

lane Departure Warning System

Monitors the vehicle’s position and initiate a warning in case of lane drift.

Forwards Vehicle Start Alert

Notifies the driver by means of a buzzer when the preceding car moves away at traffic signals

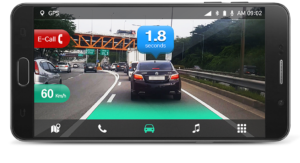

TTC (Time to Collision) for FCWS

Triggers an audio alarm when the TTC is shorter than the pre-set time

Safe Driving Index

Analyses driving data and habits

Last Parking Location

Enables the localization of parked vehicles

Forward Collision Warning System

Monitors the distance vise-a-vis the preceding car and triggers a warning in case of collision risk.

E-Call (Emergency Call)

Carry-out emergency calls to emergency centers and pre-registered emergency contacts for assistance after accident occurrence.

Eco Driving Index

Analyses the driving habits for a safe, economical, and eco driving experience

DTC

Oversees the status of all vehicle parts and performs problem diagnostics.

Android Phone Battery Charger

Maintains the phone battery charged.

ADAS Advanced Driver Assistance System

Lane Departure Warning

Monitors the driver’s position on the road and alerts the driver in case of involuntary lane deviation.

-Operating Condition: Driving speed of 60km/h or more

Forward Collision Warning

Measures the time before frontal collisions and alerts the driver in case of collision risk.

-Operating condition: Driving speed of 30km/h or more

Urban Forward Collision Warning

Measures the distance of the driver’s car vise-a-vis the foregoing car in urban environment and alerts the driver in case it dangerously approaches the preceding car

-Operating Condition: driving speed of 5km/h ~ 30km/h

E-Call Emergency Call

01
Primary and Secondary Contact
Select a primary and secondary contact from phone contact list to
receive emergency calls.
02
Emergency Contact
Input the national emergency rescue phone number
03
Insurance Contact
Input the insurance company phone number

Car Management

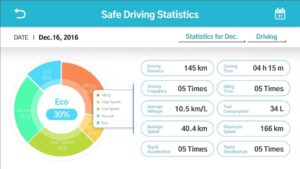

Safe driving statistics

Safe driving statistics record the number of triggered alerts and driving data such as driving distance, average speed, rapid acceleration, and deceleration. The statistics enables the vehicle user to assimilate the eco-friendly driving habits and drive in a safe manner.

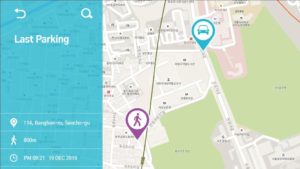

Last Parking

The latest received GPS information enables the localization of the vehicle parking spot.

Vehicle Maintenance Management

AONE application records the vehicle maintenance record (air cleaner, air filter, brake oil, etc.)  and generates diagnostic code in case of vehicle problems.

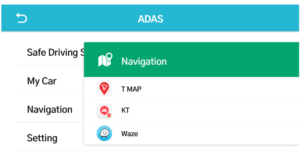

Navigation

ADAS functions can be browsed through AONE application

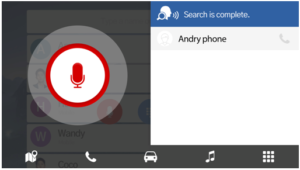

Call

During AONE usage, the driver is able to generate phone calls through voice recognition or dialing. In case of in-coming calls the default screen appears and speakerphone mode is set.

Product Components

No.1

Smartphone Application

No.2

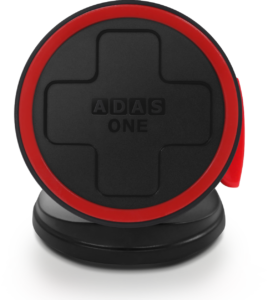

Smartphone Cradle

No.3

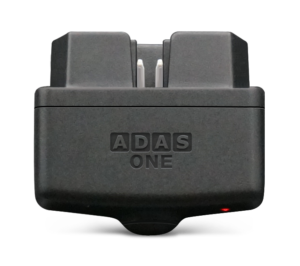

OBD II Scanner

No.4

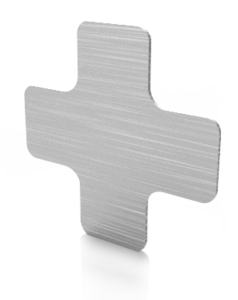

Steel Plate

No.5

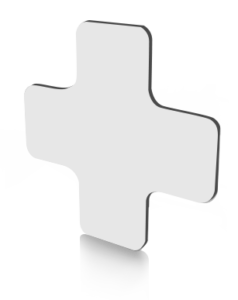

Double-sided Tape

No.6

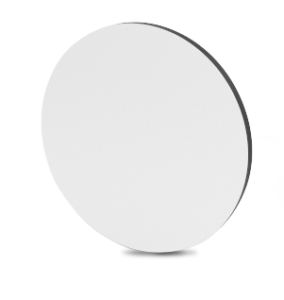

Double-sided Tape

No.7

Manual

Operating Voltage Range 12 V
Operating Temperature (-)200C to (+) 700C
Rated Output power 5W (5V / 1A)
OBD Module Dimensions (W) 45 mm X (H)40mm X (D)25mm
MCU Core ARM © 32-bit Cortex©-M3 CPU
Internal Memory 512 Kbytes of Flash memory, 64 Kbytes of SRAM
Status LED RED x1
